The Soundfield VG speaker cable opens a new dimension in the audiophile category.
Soundfield VG speaker cable
- Clear, precise and natural sound
- Neutral mid-range and tight bass
- Frequency-range extension
- Wide sound-stage
- Low noise
The Soundfield VG speaker cable features balanced quad-core helix conductors, 9 AWG full conductor cross-section, separate multi-purpose conductors, reduced resistance, and virtual grounding technology. The appearance of the Soundfield VG model features the latest internal helix structure, thereby minimizing the inductive and capacitive effects of the parallel structure of the conductors, which negatively affects the phase accuracy of the signal.
The balanced, quad-core helix-structured conductors are coated with a special antistatic film, synthetic polymer insulation, and a special high-density polyester damping outer casing. The dielectric constant of the high-density polyester layer is lower than that of commonly used Teflon insulation and provides adequate protection against environmental vibrations.
The new dual Nano Black Helix outer layer not only gives the Soundfield VG speaker cables a special and unique look, but the special polymer film coated with a 500-nanometer-thick metal layer prevents radio frequencies and electromagnetic interference from entering the cable’s internal structure. Similar metallised polymer films are used in NASA spacesuits to reflect radiation and it has been applied as an antistatic layer for insulating materials in aircraft.
In pure copper wires, the fields generated by the current are effectively attenuated by internal separation, while the new, improved nano Black Helix layer is responsible for external electromagnetic and radio frequency noise protection, which together reduces the negative interaction between current in the conductor and insulation.
In addition to the advantages of symmetrical design, the Balanced quad-core helix structure effectively reduces the skin effect, as the conductors are not only composed of elementary strands but are arranged in separate groups. The cross-section of the conductors is small enough to prevent the development of a skin effect, but overall, the conductors have a suitable cross-section to ensure optimal signal transmission.
Virtual Grounding technology
Soundfield VG speaker cable with Virtual Grounding technology provides extremely efficient noise-free signal transmission. The ever-expanding wireless technologies, electromagnetic noise, and magnetic fields generated by home appliances and other electronics cause stray voltages that negatively affect signal clarity and sound reproduction. The Virtual Grounding technology of the Soundfield VG speaker cable provides an independent virtual ground point that can effectively dissipate radio frequency / electromagnetic noise, ensuring signal clarity. The result is realistic sound, expansive spatial details, greater dynamics, and an expansive sound stage.

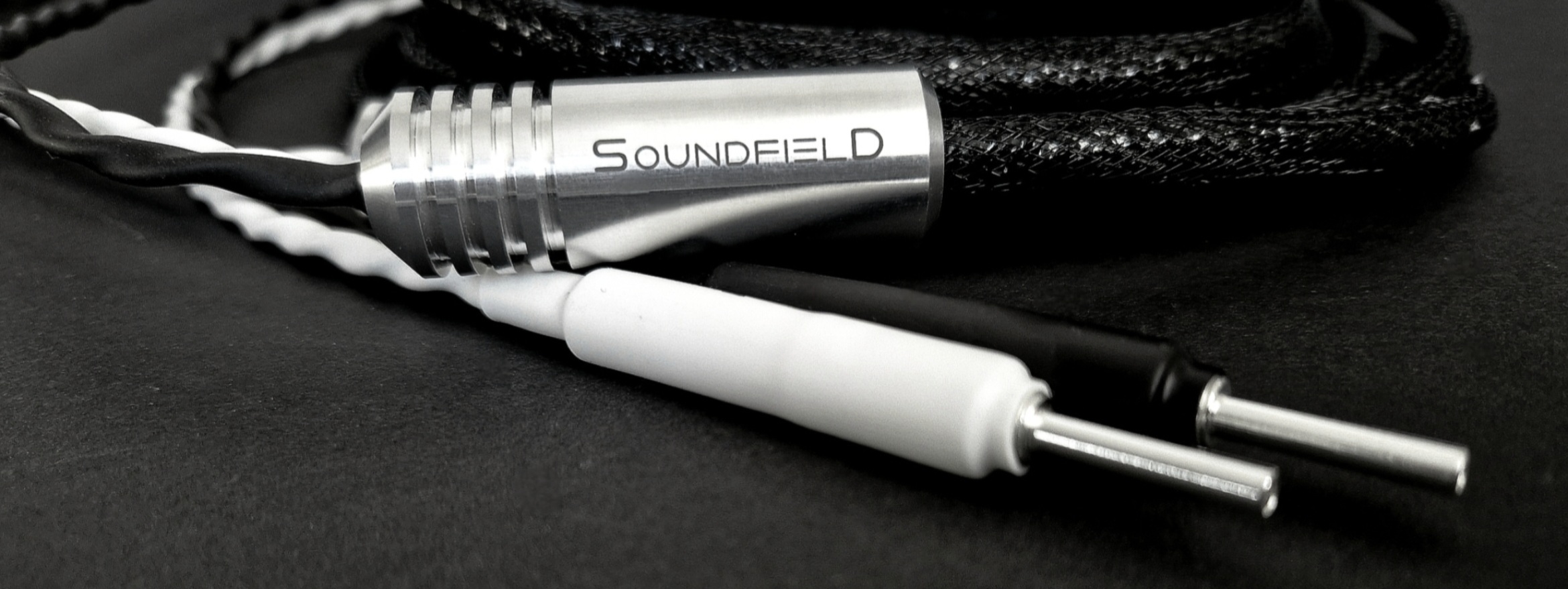

The Soundfield VG model has high-quality, selected, pure silver-plated high purity copper connectors. The pure silver coating on the outside of the contacts provides a proper connection that has measurably better electrical parameters and clearer signal transmission than the gold coating. The Soundfield VG speaker cable is also available with high-quality pure copper-silver banana plugs or pure copper-silver spades.
Soundfield VG speaker cables are made with solder-free, precision manual mounting.
Soundfield VG speaker cables are placed in a special tissue bag after the last quality check.
Technical characteristics: Resistance: 0.0027 Ω/ft, Capacitance: 71 pF/ft, Inductance: 0.1 μH/ft
Available lengths: 2 x 7ft/210cm, 2 x 9ft/270cm, 2 x 12ft/360cm and custom sizes.
- Design: Virtual Grounding Technology
- Color: Cabon Black nano
- Conductors: Pure copper
- Total conductive cross-section: 9 AWG – 6 mm2
- Discrete solid conductors: 120 – Balanced quad-core helix structure
- Insulation: PET, metallised polymer film, PVC
- Connectors material: Pure silver plated high-purity copper

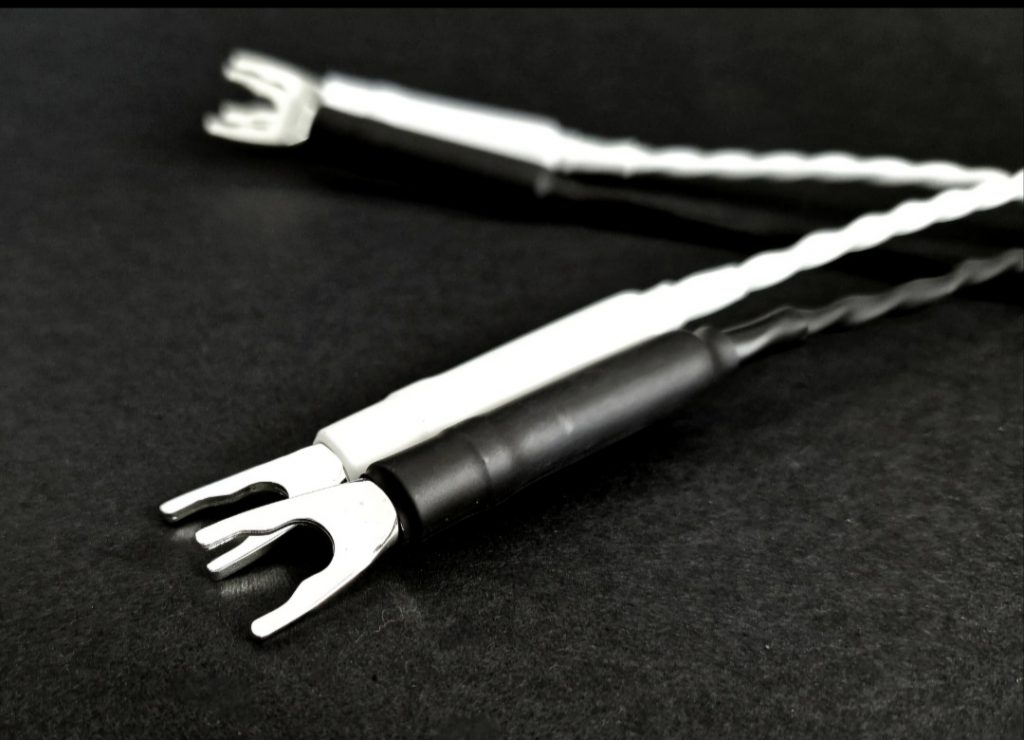

- Connector types: banana plug or spade
- Cable length 2x: 7Ft / 210cm, 9ft / 270cm, 12ft / 360cm and custom sizes
Price (incl. VAT):
Soundfield VG speaker cable (pair): 7 ft-599 €, 9 ft-699 €, 12 ft-849 € / Single versions for home movie (each): 5 ft-399 €, 7 ft-449 €, 9 ft-549 €
NOTE: To get the best quality of Soundfield VG speaker cables, you need a “burn-in” period. After about 10-14 days of using Soundfield VG speaker cables, the sound quality becomes more life-like.
